FW Weighing Module

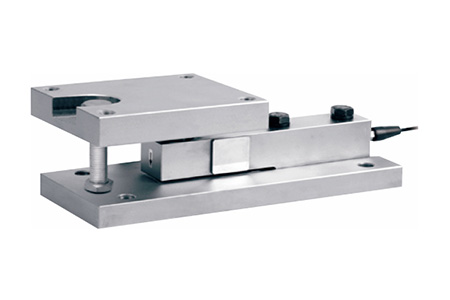

  | FW weighing module is a kind of static weighing module which is convenient for customers to install and use quickly.The product is specially designed and considers various weighing details.Only need to select the appropriate capacity and reserve the corresponding installation holes to transform the equipment into a weighing equipment. |

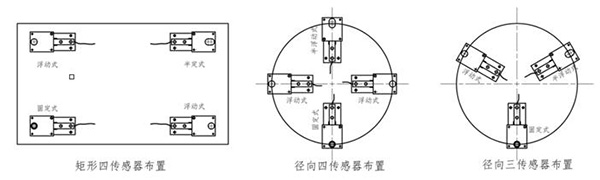

Installation layout

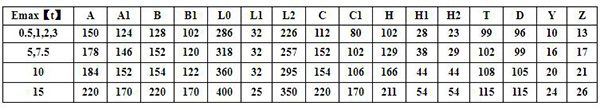

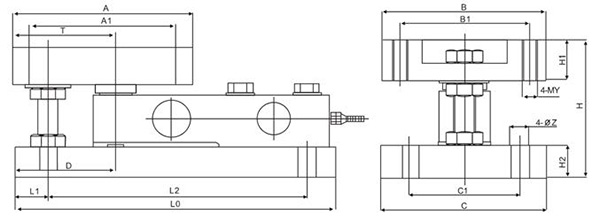

Dimensions(mm):
| Features： IP67 protection Anti-overturning functionn Sealing:hermetically welded Nickel plated alloy steel & Stainless steel Max.capacities：0.5t~15t |
Specification:
Maximum capacity（Emax）（kg） | 0.5 | 1 | 2 | 3 | 5 | 7.5 | 10 | 15 | ||
Rated output（mV/V） | 2.0±0.002 | |||||||||
Accuracy class（%F.S） | ±0.02 | ±0.03 | ±0.05 | |||||||
Zero balance（%F.S） | ±1 | |||||||||
Temp.effect on zero（%F.S/10℃） | ±0.02 | |||||||||
Temp.effect on zero（%F.S/10℃） | ±0.02 | |||||||||
Input resistance（Ω） | 400±20 | |||||||||
Output resistance （Ω） | 352±3 | |||||||||
Insulation resistance@50VDC（MΩ） | ≥5000 | |||||||||
Temperature range compensated（℃） | -10~﹢40 | |||||||||
Temperature range operating （℃） | -30~﹢70 | |||||||||
Safe load limit（%F.S） | 150 | |||||||||
Ultimate load limit（%F.S） | 200 | |||||||||
Excitation voltage,recommend（V DC） | 10~12 | |||||||||
Excitation voltage,maximum（V DC） | 15 | |||||||||
Protection class | IP67 | |||||||||
Construction | alloy steel、 Stainless steel | |||||||||
Cable | Length：2.6m（0.5~2t），3.5m（3t），5.2m（5~8t），7m（10t），12m（15t） | |||||||||
Diameter：Φ5.8mm | ||||||||||
Wiring schematic diagram | Exc+：Red；Exc-：Black；Sig+：Green；Sig-：White | |||||||||
