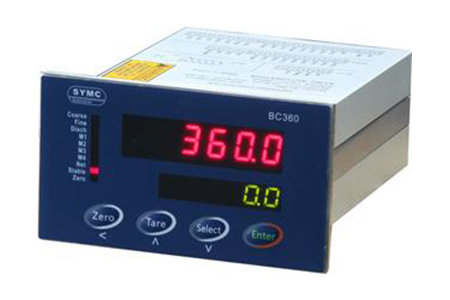

BC360A

BC360A batching controller is suitable for the application of multiple ingredients batching in one weighing container. Due to its compact size and flexible batchweighing function, it is particularly suitable for feed ingredients, chemical compounding, commercial concrete and road asphalt production processes.

Dimensions(mm): 110×62×131 Cutout: 46×92

Features：

Compact Panel Mount structure, save installation space

New generation of embedded high speed processor, strong on anti-interference

Optimized digital filter and quick following technology

Two-speed feeding

Supports up to four ingredients batching and discharge

Supports automatic, semi-automatic and manual mode

Support batch and cumulative function

Store 10 groups of formula with non-volatile.

4xDI / 12x DO, support redefinition

Auto zero tracking available

Power-up zero available

Isolated RS232/RS485

Standard MODBUS RTU protocol

Specification:

Enclosure	Panel Mount. Front plate: SS304, IP65. Case: Anodized Aluminum
Run Mode	2-speed, 1~4 ingredients batching
Signal Range	-20mV~+20mV	Increments	1,2,5 x 10ⁿ(n=-3 ~1)
Max. Sensitivity	0.5uV/d	Max. Resolution	1/50,000
FS Drift	3ppm/°C	Linearity	0.003%FS
AD Refresh Rate	200Hz	Cells Load	Four (4) 350 ohm load cells
Display	6-digit 0.4’ segment LED, 6-digit 0.28’segment LED, 10-bit LED light bar
Keypad	4 Flat switch membrane with tactile-feel keys; polyester overlay
Discrete I/O	4 Inputs; 12 Outputs(24VDC @500mA with over-load protection)
USART	COM1: RS232 / RS485
Serial Protocol	MODBUS-RTU, Command output, Print, Continuous Output
Accessory	Profibus DP(Module): SY-PB-MD-36
Power Supply	18~30VDC, 160mA
Operating Temperature	-10°C ~ +40°C，Relative humidity:10%~90%，non-condensing
