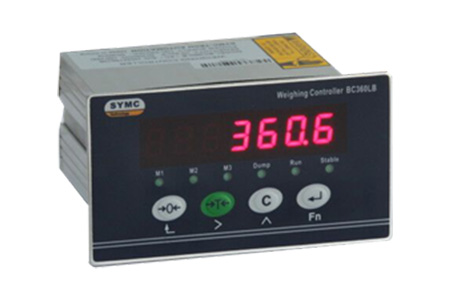

BC360LB

BC360LB is a batch weighing controller designed for simple/small batching station application. This controller has small size and easy to operation. With minimum wiring and assembly work the technician can realize 1~3 ingredients precisely batching and dump control. The controller can work as a standalone batching equipment also can be networked with PLC or SCADA system realizing remote monitor and control.

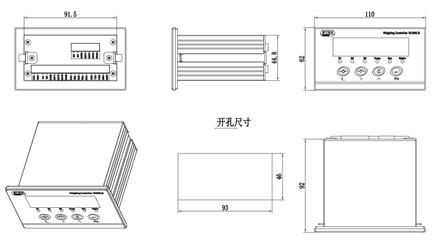

Dimensions(mm):

Features：

1~3 ingredients batching

Compact Panel Mount structure

4 opto inputs & 6 Relay Outputs

Auxiliary Setpoint Comparison

Cal-Free Calibration

Auto zero tracking available

Power-up zero available

Isolated RS232 + RS485 serial interface

Standard MODBUS RTU protocol

Print report

24VDC or 100~240VAC power supply

Specification:

Enclosure	Front plate: Aluminum , IP65. Case: Aluminum
Run Mode	1~3 ingredient batching, 6-setpoint control
Signal Range	-20mV~+20mV	Increments	1,2,5 x 10ⁿ(n=-3 ~1)
Max. Sensitivity	0.2uV/d	Max. Resolution	1/50,000
FS Drift	3ppm/°C	Linearity	0.003%FS
AD Refresh Rate	100Hz	Cells Load	Four (4) 350 ohm load cells
Display	7-digit 0.4’ segment LED
Keypad	4 tactile-feel keys; polyester overlay
Discrete I/O	4xDI,6x Relay DO 2 Inputs; 3 Outputs(220VAC @ 5A)
USART	COM1: RS232; COM2: RS485
Serial Protocol	MODBUS-RTU, Print, Continuous Output
Option	N/A
Power Supply	18~30VDC or 100~240VAC available
Operating Temperature	-10°C ~ +40°C，Relative humidity:10%~90%，non-condensing
