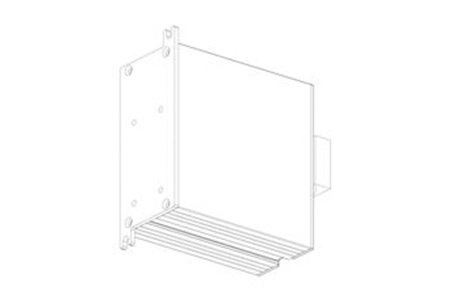

BC360L-CD

BC360L-CD series weight transmitter is suitable for those have multiple weighing nodes and limited cabinet space industrial occasions. Connect two sets of loadcell signals, the real-time weighing signal can be converted into standard industrial communication signals, remote transmission to upper PLC or PC , widely used in metallurgy, chemical industry, building materials, feed, textile, labs, material force analysis and other industries.

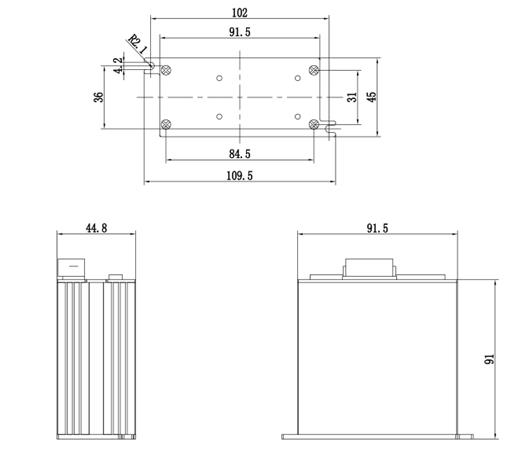

Dimensions(mm):

Features：

Internal installation of cabinet, save installation space

New generation of embedded high speed processor, strong on anti-interference

Optimized digital filter and quick following technology

Isolated RS232 / RS485 serial interface

Standard MODBUS RTU protocol

Connect two sets of loadcell signals

DC24V power supply

Specification:

Enclosure	Front plate: Aluminum , IP65. Case: Aluminum
Run Mode	Transmitter
Signal Range	-20mV~+20mV	Increments	1,2,5 x 10ⁿ(n=-3 ~1)
Max. Sensitivity	0.5uV/d
FS Drift	3ppm/°C	Linearity	0.003%FS
AD Refresh Rate	100Hz	Cells Load	Four (4) 350-ohm load cells
Discrete I/O	2xDI,3x Relay DO 2 Inputs; 3 Outputs(220VAC @ 5A)
USART	COM1: RS232; COM2: RS485
Serial Protocol	MODBUS-RTU, Command output, Continuous Output
Power Supply	18~30DCV, 60mA
Operating Temperature	-10°C ~ +40°C，Relative humidity:10%~90%，non-condensing
