BC360LH4

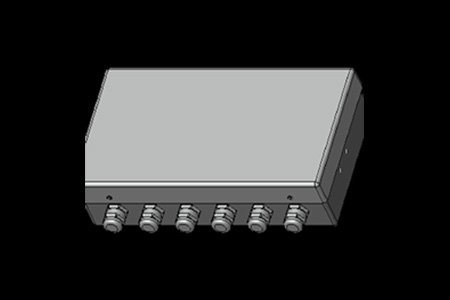

BC360LH4 is a 4-Channel transmitter with harsh enclosure. The 1~4 channels real-time weighing signal can be converted into standard industrial communication signals, all the 4 channel weight can be display together and transferred via RS485 or CAN with optional TouchPanel. The transmitter is widely used in metallurgy, chemical industry, building materials, feed, textile, labs, material force analysis and other industries.

Features：

Harsh Enclosure with IP65 Protection

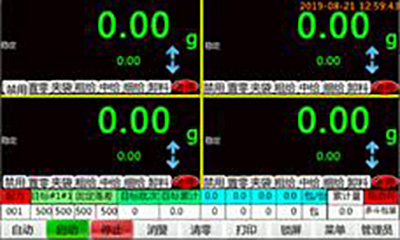

Optional Integrated Touch Panel

New generation of embedded high speed processor, strong on anti-interference

Optimized digital filter and quick following technology

Channel independent Over/under Range alarm

Auto zero tracking available

Power-up zero available

Isolated RS232 / RS485 serial interface

Standard MODBUS RTU protocol

Optional CAN bus interface

DC9~36V power supply

Specification:

Enclosure	Harsh Enclosure with IP65 Protection grade
Run Mode	Over/under, Peak force measurement，Weight indicator
Signal Range	-20mV~+20mV	Increments	1,2,5 x 10ⁿ(n=-3 ~1)
Max. Sensitivity	0.5uV/d	Max. Resolution	1/50,000
FS Drift	3ppm/°C	Linearity	0.003%FS
AD Refresh Rate	100Hz	Cells Load	Four (4) 350 ohm load cells
Display	Touch OP optional
Channel	1~4 weighing Channels
USART	COM1: RS232; COM2: RS485
Serial Protocol	MODBUS-RTU, Command output, Continuous Output
Option	CAN-BUS optional
Power Supply	9~36DCV, 60mA
Operating Temperature	-10°C ~ +40°C，Relative humidity:10%~90%，non-condensing
