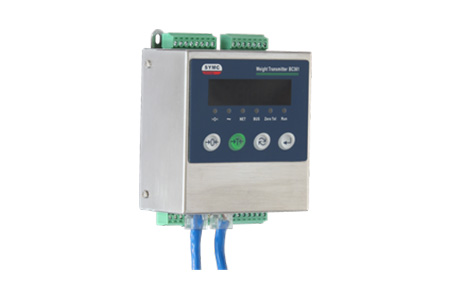

BC361

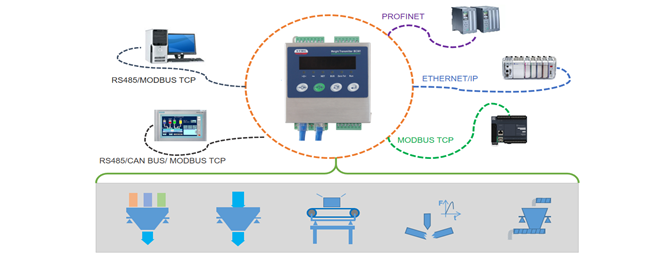

BC361 is a new-designed dynamic weighing terminal with high-performance. The terminal’s internal A/D sample and process rate can be configured up to 1600Hz and the weight signal refresh rate reach max 100Hz via field bus. The mainly supported field bus includes Ethernet/IP, Profinet, MDOBUS TCP besides RS485 or CAN BUS. The terminal is ideally suited for the application such as dynamic check-weighing, weigh-in and weigh-out, accurate ingredients batching, fatigue force test, etc.

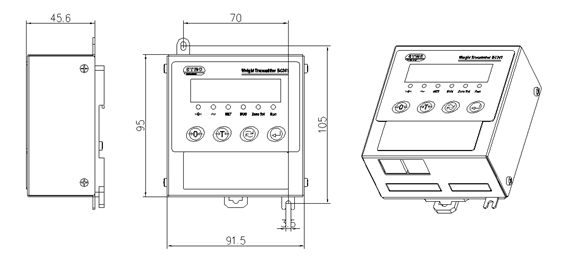

Dimensions(mm):

Features：

Hi-speed A/d sample

Compact Panel or DIN_RAIL structure

Checkweigh, Weigh-in/Weigh-out, Setpoint

Optional field bus: Ethernet/IP/ Profinet/MDOBUS TCP

Optional RS485 or CAN BUS

Cal-Free Calibration

Auto zero tracking available

Power-up zero available

Standard MODBUS RTU protocol

24VDC power supply

Specification:

Enclosure	Panel: SUS304 + Aluminum; DIN-RAIL: SUS304
Run Mode	Check-weigh, Weigh-in/Weigh-out, Setpoint
Signal Range	-20mV~+20mV	Increments	1,2,5 x 10ⁿ(n=-4 ~1)
Max. Sensitivity	0.2uV/d	Max. Resolution	1/200,000
FS Drift	3ppm/°C	Linearity	0.003%FS
AD Refresh Rate	100Hz~1920Hz	Cells Load	Eight (8) 350 ohm load cells
Display	6-digit 0.4’ segment LED
Keypad	4 tactile-feel keys; polyester overlay
Discrete I/O	6xDI,6x DO(Optional)
USART	COM1: RS232
Serial Protocol	MODBUS-RTU, Print, Continuous Output
Option	RS485/CAN-BUS/Profinet/Ethernet IP/MODBUS TCP
Power Supply	18~30VDC
Operating Temperature	-10°C ~ +40°C，Relative humidity:10%~90%，non-condensing
