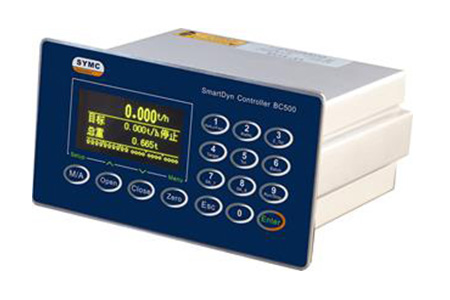

BC500-A

BC500A impact plate flow controller is designed for impact plate flow balance or flow meter products. Impact plate flow meter can automatically maintain a prespecified throughput of free-flowing bulk material. It has advantages as overload protection, continuous feeding, long-term stability and easy maintenance. Widely used in gravimetric proportioning of blending different material varieties application of food, feed, electric power, mining, chemical, cement, metallurgy and other fields.

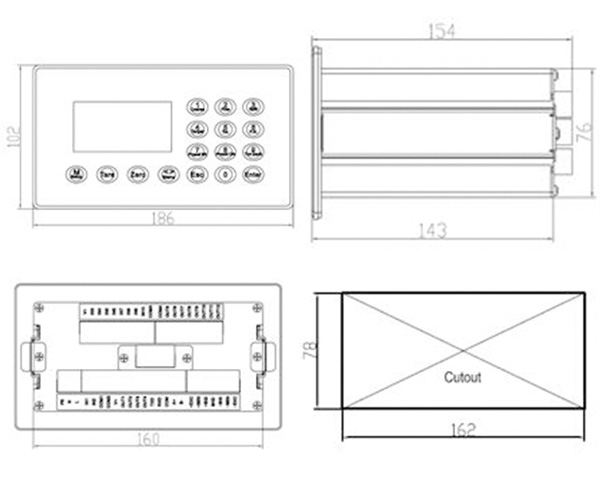

Dimensions(mm):

Features：

Fast and accurate continuous constant feeding control

Operating modes: 1. constant flow control; 2. Constant level control; 3. Quantitative feeding with constant flow

Compatible with pneumatic or electric actuators

Continuous feeding

Cumulative error < 0.5% (depending on the equipment and material characteristic)

Support for Remote/Local switching and Manual/Auto switching on panel

Rich information include instantaneous flow rate, setting value and cumulative total in one screen

Real-time status monitoring and alarm chain algorithm

Real-time monitoring cell’s load ratio. easy maintenance, and troubleshooting

Standard MODBUS RTU protocol for easy access to SCADA or DCS system

Profibus DP interface option available
