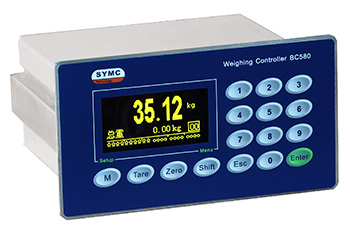

BC580-A

BC580 is a general quantitative weighing controller adopting embedded 32-bit M3 core platform, dedicated to industrial weighing processes. The instrument based on ALL-IN-ONE design concept, integrated high resolution, flexible control flow, rich communication interfaces and friendly HMI in one, is widely used in metallurgy, chemical industry, building materials, paint, food and feed, beverage, ports and other sectors of packaging, drum-filling, dosing, bulk materials, ingredients and other occasions.

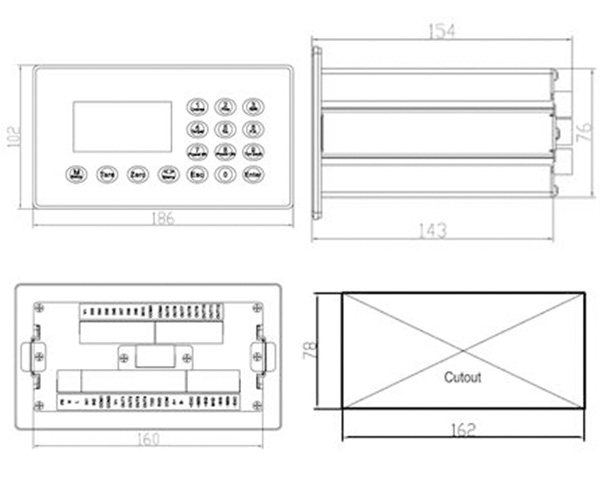

Dimensions(mm):186×102×154 Cutout: 162×78

Features：

20 groups of material setpoints records

Automatic and manual accumulation

Modify parameters with non-stop

Fast, medium and slow feeding control

2 level fast adaptive filtering

Rapid response, improve the packing speed above 20%

Support dual-hopper scale

Support weigh-out dosing application

Batch and volume preset function

Automatic refill(in dosing mode)

Feeding and discharge interlock

Automatic spill correction

Automatic flap bag(in powdery packing scale)

Smart setpoint learning function

Multilingual menu-tree GUI

2 USARTs(1x RS485, 1x RS232)

Optional Profibus DP interface
