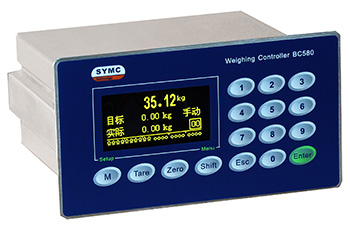

BC580A6

BC580A6 is a 6-ingredient batching controller derived from industrial weighing platform BC580. The instrument is equipped with an OLED dot-matrix GUI and can provide intuitive working procedure prompts, can operate from panel, remote IO and/or communication. This batching controller can be widely used in the application with batching materials less than 6 ingredients such as chemical, food, cereal, feed, BB fertilizer, and commercial concrete and dry mixed mortar.

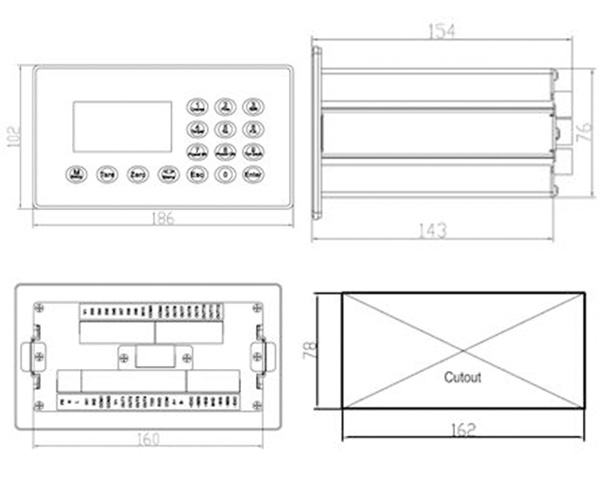

Dimensions(mm):186×102×154 Cutout: 162×78

Features：

Store 10 groups of recipes

Each recipe includes up to 6 ingredients

Modify parameters with non-stop

Batching material in any order

Support most 6 ingredients

Can work in manual, semi-auto or auto mode

Time delay on feeding or dumping

Zero or Tare command via external input

All inputs and outputs are re-assignable

Serial print out or MODBUS networking

Optional Profibus DP interface

Specification:

Enclosure	Panel Mount. Front plate: SS304, IP65. Case: Anodized Aluminum
Batch Mode	MIMO，AIMO，AIAO
Signal Range	-20mV~+20mV	Increments	1,2,5 x 10ⁿ(n=-4 ~1)
Max. Sensitivity	>0.2uV/d	Max. Resolution	1/100,000
FS Drift	3ppm/°C	Linearity	0.0005%FS
AD Refresh Rate	>200Hz	Cells Load	Eight (8) 350 ohm load cells
Display	128x64 Yellow-Green OLED display
Keypad	16 Flat switch membrane with tactile-feel keys; polyester overlay
Discrete I/O	10 Inputs; 12 Outputs(24VDC @500mA with over-load protection)
USART	COM1: RS232；COM2: RS485
Serial Protocol	MODBUS-RTU, Print, Continuous Output
Option	A001: 4~20mA/0~10V; P001: PROFIBUS DP
Power Supply	100~240VAC，50/60Hz,<100mA(@100VAC)
Operating Temperature	-10°C ~ +40°C，Relative humidity:10%~90%，non-condensing
