BC580DF

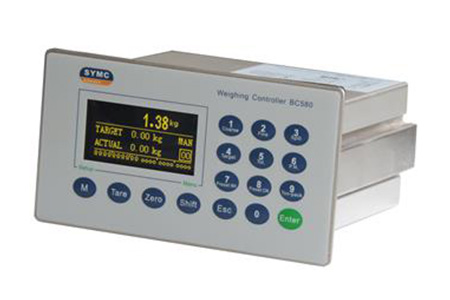

BC580DF is a quantitative weighing controller dedicated to kinds of liquid materials drum filling with fill gun be up or under level. The instrument is equipped with an OLED dot-matrix GUI and can provide intuitive working procedure prompts. It provides the features including bucket checking, fill gun auto-dropping, impacts detect and drawback, fill gun auto pull up in under level mode thus suits for net or gross drum filling to the liquids with/without foam.

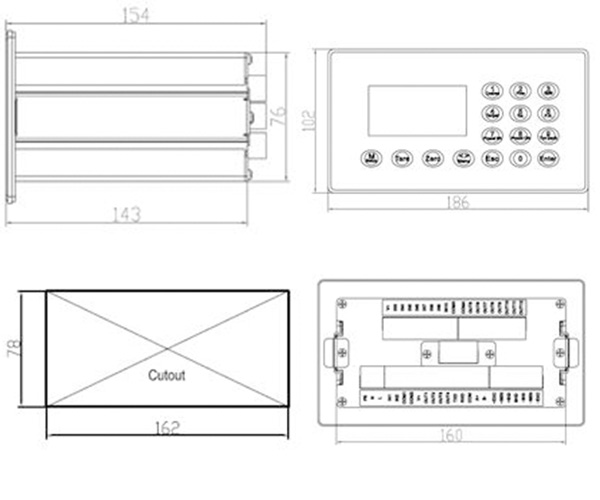

Dimensions(mm):186×102×154 Cutout: 162×78

Features：

20 groups of material setpoints records

Automatic and manual accumulation

Modify parameters with non-stop

Fast and slow filling control

2 level fast adaptive filtering

Rapid response, improve the Filling speed above 20%

Automatic detect bucket range.

Automatic drop fill gun

Smart detect bucket impact on dropping

Support fill gun up or under level mode

Support net or gross filling

Fill gun move with liquid level

Manual or automatic work mode

All inputs and outputs are re-assignable

Serial print out or MODBUS networking

Optional Profibus DP interface

Specification:

Enclosure	Panel Mount. Front plate: SS304, IP65. Case: Anodized Aluminum
Drum filling Mode	Up level/Net mode, Up level/Gross mode, Under level/Net mode, Under level/Gross mode,
Signal Range	-20mV~+20mV	Increments	1,2,5 x 10ⁿ(n=-4 ~1)
Max. Sensitivity	>0.2uV/d	Max. Resolution	1/100,000
FS Drift	3ppm/°C	Linearity	0.0005%FS
AD Refresh Rate	>200Hz	Cells Load	Eight (8) 350 ohm load cells
Display	128x64 Yellow-Green OLED display
Keypad	16 Flat switch membrane with tactile-feel keys; polyester overlay
Discrete I/O¹	10 Inputs; 12 Outputs(24VDC @500mA with over-load protection)
USART	COM1: RS232；COM2: RS485
Serial Protocol	MODBUS-RTU, Print, Continuous Output
Option	A001: 4~20mA/0~10V; P001: PROFIBUS DP
Power Supply	100~240VAC，50/60Hz,<100mA(@100VAC)
Operating Temperature	-10°C ~ +40°C，Relative humidity:10%~90%，non-condensing
