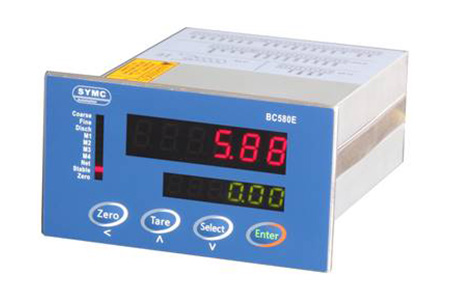

BC580-E

BC580E series weight controller is suitable for those have multiple weighing nodes and limited cabinet space industrial occasions. The real-time weighing signal can be converted into standard industrial communication signals, integrating field display and remote transmission, quantitative control and set-point comparison at the same time, widely used in metallurgy, chemical industry, building materials, concrete, feed and other industries.

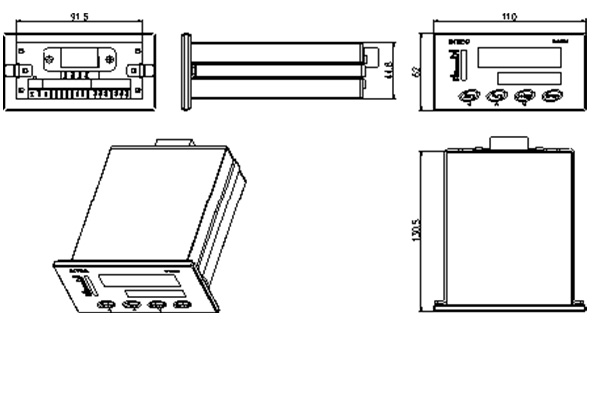

Dimensions(mm):110×62×131 Cutout: 46×92

Features：

Compact Panel Mount structure, save installation space

New generation of embedded high speed processor, strong on anti-interference

Optimized digital filter and quick following technology

16-bit precision DA output, 4 ~ 20mA / 0 ~ 10V available

Embedded material transfer control

Embedded Setpoint comparison function

Auto zero tracking available

Power-up zero available

Isolated RS232 / RS485 serial interface

Standard MODBUS RTU protocol

Optional Profibus DP interface

Specification:

Enclosure	Panel Mount. Front plate: SS304, IP65. Case: Anodized Aluminum
Run Mode	2-speed material transfer mode, Setpoint comparison
Signal Range	-20mV~+20mV	Increments	1,2,5 x 10ⁿ(n=-3 ~1)
Max. Sensitivity	0.5uV/d	Max. Resolution	1/50,000
FS Drift	3ppm/°C	Linearity	0.003%FS
AD Refresh Rate	200Hz	Cells Load	Four (4) 350 ohm load cells
Display	6-digit 0.4’ segment LED, 6-digit 0.28’segment LED, 10-bit LED light bar
Keypad	4 Flat switch membrane with tactile-feel keys; polyester overlay
Discrete I/O	1 Inputs; 4 Outputs(24VDC @500mA with over-load protection)
USART	COM1: RS232 / RS485
Serial Protocol	MODBUS-RTU, Command output, Print, Continuous Output
Option	E2: 4~20mA/0~10V; E3: PROFIBUS DP
Power Supply	18~30VDC, 160mA
Operating Temperature	-10°C ~ +40°C，Relative humidity:10%~90%，non-condensing
