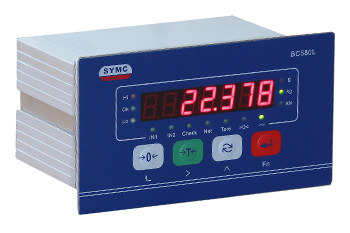

BC580L

BC580L series general weighing controller is embedded with all kinds of basic weighing setpoint control sequences. This feature makes it possible to be applied in most industrial weighing fields with economical cost spending. The real-time weighing signal can be converted into standard industrial communication signals, integrating field display and remote transmission, quantitative control and setpoint comparison at the same time, widely used in metallurgy, chemical industry, building materials, feed, textile, labs, material force analysis and other industries.

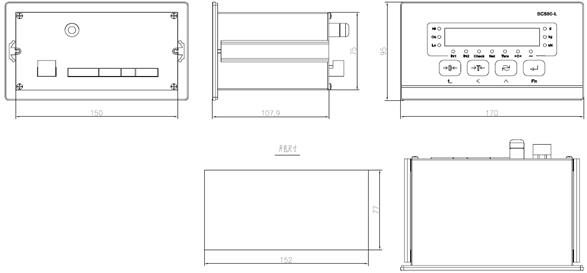

Dimensions(mm):

(W×H×D): 170×95×125. (W×H): 152×77

Features：

Compact Panel Mount structure, save installation space

New generation of embedded high speed processor, strong on anti-interference

Optimized digital filter and quick following technology

4 ~ 20mA / 0 ~ 10V analog out available

Over/under limit alarming

Embedded material transfer control

Embedded Setpoint comparison function

Check-weigh control

Auto zero tracking available

Power-up zero available

Isolated RS232 / RS485 serial interface

Standard MODBUS RTU protocol

220VAC power supply (24VDC available)

Specification:

Enclosure	Panel Mount. Front plate: SS304, IP65. Case: Anodized Aluminum
Run Mode	2-speed material transfer mode, Setpoint comparison，Over/under, Check weigh，Reduction weigh，Peak force measurement，Gross/net fill
Signal Range	-20mV~+20mV	Increments	1,2,5 x 10ⁿ(n=-3 ~1)
Max. Sensitivity	0.5uV/d	Max. Resolution	1/50,000
FS Drift	3ppm/°C	Linearity	0.003%FS
AD Refresh Rate	100Hz	Cells Load	Four (4) 350 ohm load cells
Display	7-digit 0.56’ segment LED
Keypad	4 tactile-feel keys; polyester overlay
Discrete I/O	2 Inputs; 3 Outputs(220VAC @ 5A)
USART	COM1: RS232; COM2: RS485
Serial Protocol	MODBUS-RTU, Command output, Continuous Output
Option	4~20mA/0~10V，Profibus DP
Power Supply	180~240VAC, 60mA; 24VDC, 150mA
Operating Temperature	-10°C ~ +40°C，Relative humidity:10%~90%，non-condensing
