BC580LN

BC580LN indicator is designed with a patented structure to simplify the installation work load but the IP protection reach IP65. The BC580LN enclosure uses 304 stainless steel material and is special suitable for healthy concerned food/beverage industry or anti-corrosive chemical industry. With supporting attachments, the BC580LN terminal can be mounted on the wall or column supports.

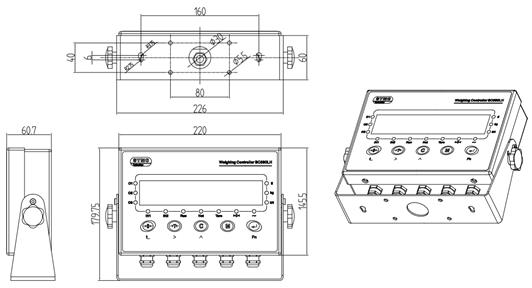

Dimensions(mm):Panel size (W×H): 222 x 145.5mm Depth: 61mm

Features：

Patented structure design, simple installation

IP68 protection for water or dust and anti-corrosive.

New generation of embedded high speed processor, strong on anti-interference

Optimized digital filter and quick following technology

4 ~ 20mA / 0 ~ 10V analog out available

Over/under limit alarming

Embedded Setpoint comparison function

Check-weigh control

Auto zero tracking available

Power-up zero available

Isolated RS232 / RS485 serial interfaces

Standard MODBUS RTU protocol

100~220VAC or 24VDC power supply

Specification:

Enclosure	Harsh enclosure. Material: SS304, IP65.
Run Mode	2-speed material transfer mode, Setpoint comparison，Over/under, Check weigh，Reduction weigh，Peak force measurement，Gross/net fill
Signal Range	-20mV~+20mV	Increments	1,2,5 x 10ⁿ(n=-3 ~1)
Max. Sensitivity	0.5uV/d	Max. Resolution	1/50,000
FS Drift	3ppm/°C	Linearity	0.003%FS
AD Refresh Rate	<100Hz	Cells Load	Four (4) 350 ohm load cells
Display	7-digit 1’(25mm) height segment LED
Keypad	5 tactile-feel keys; polyester overlay
Discrete I/O	2 Inputs; 3 Relay Outputs(220VAC @ 5A)
USART	COM1: RS232; COM2: RS485
Serial Protocol	MODBUS-RTU, Command output, Continuous Output, Print
Option	4~20mA/0~10V，Profibus DP
Power Supply	100~240VAC, 60mA / 24VDC, 150mA
Operating Temperature	-10°C ~ +40°C，Relative humidity:10%~90%，non-condensing
