BCM1801

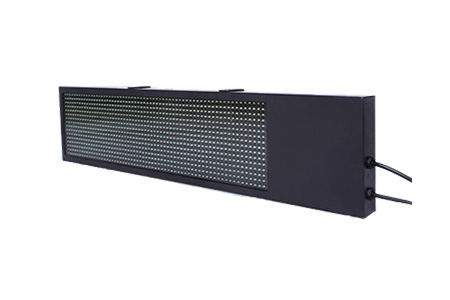

BCM1801 Series remote LED display, adopting cold-rolled plate stamping process and electrostatic powder spraying technology, the enclosure has elegant appearance and fine durability. With the latest generation display module, the BCM1801 Series bring high brightness and high resolution, can display text information distinctly and clearly even in distance, meanwhile they offer consumers multiple colors to choose including red, green, yellow, white, blue, etc.

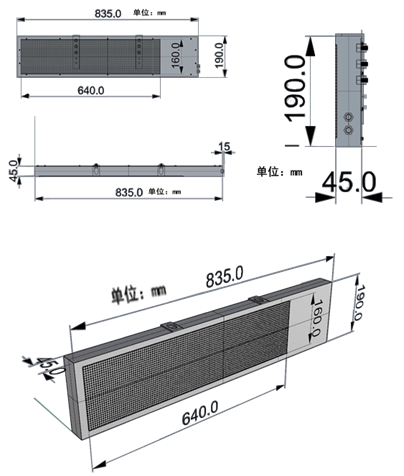

Dimensions(mm):

Features：

LED lattice screen

Character height: 160mm

Outdoor rainproof type

Metrological display of industrial weighing

5 display colors available

Isolated RS232 / RS485 serial interface

220VAC power supply

Matching with all type of weighing terminal

European power plug available

Specification:

Installation	wall mounted, lifting
Brightness	Automatically adjust the brightness level according to the climatic situation
Baud rate	600 、1200、 4800、 9600
Temperature range	- 42℃~85℃，accuracy is approximately±2℃
Clock accuracy	The diurnal error is less than 1 seconds
Size of the display	640*160 mm（length x height）
Size of the screen body	835mm190mm45mm （length x height x depth）
Pixels	64*16 pixels（length x height）
USART	RS232/RS485
Serial Protocol	Continuous Output
Power Supply	100~240VAC
Operating Temperature	-10°C ~ +50°C，Relative humidity:10%~90%，non-condensing
