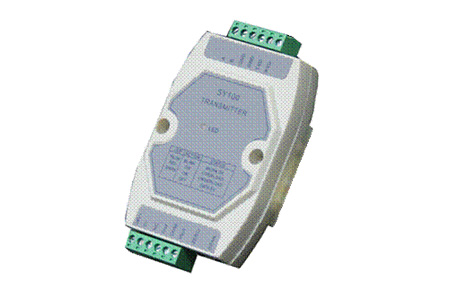

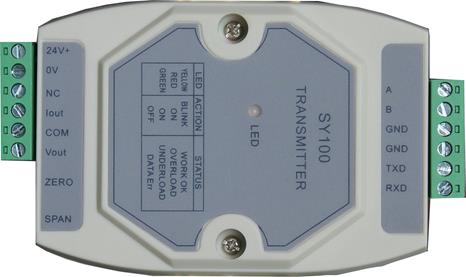

SY100

SY100 signal Converter designed for converting RS232/RS485 serial data to industrial standard analog output as 4~20mA or 0~10V to realize uniform physical communication to general PLC or DCS. The module has compact size, flexible installations and is easy to maintain. It is also a cost effective module and suit for the applications which need multi-channel remote communications or system upgrading.

Features：

Input signal support RS232/RS485

Analog output support 4~20mA / 0~10V

16-bit high resolution DA converter

Compact Din-Rail Mounting

Calibrate by 2 keypads

3-color LED working indicator

Baud Rate: 9600(Default),2400

Compatible with Toledo IND110

Serial protocol customised on request

24VDC power supply

Specification:

Enclosure	Din Rail Mount. PC material
Working Mode	USART - Analog output Signal Conversion
Display	3-color working indicator
Keypad	2 keypads
input signal	RS232/RS485
Serial Protocol	Continuous Output
Output signal	0~20mA, 4~20mA, 0~5V, 0~10V
Power Supply	24VDC
Operating Temperature	-10°C ~ +40°C，Relative humidity:10%~90%，non-condensing
Dimensions(mm)	118(H)x72(W)x40(D)
