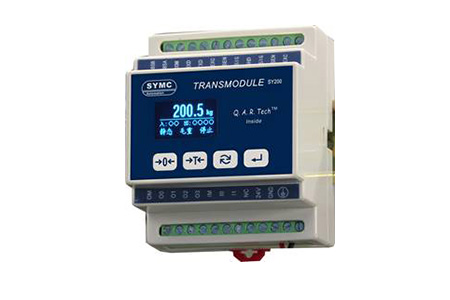

SY200

SY200 is a process-weighing oriented DIN-Rail weighing module. The module has a strong and flexible function, user-friendly HMI, rich information, easy operation and maintenance. SY200 weighing module suit for those have multiple weighing nodes and limited cabinet space industrial occasions such as:sorting,quantitative filling, packaging and other applications.

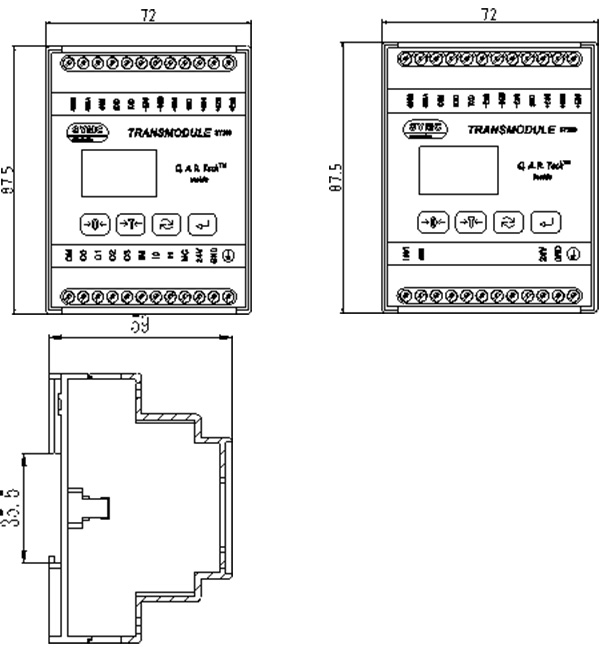

Dimensions(mm):

Features：

35mm DIN-Mount structure with modularized design

Bright OLED dot-matrix display

Optimized digital filter and quick following technology

Keypad Zero, Tare, Clear from panel

Embedded material transfer control

Embedded Setpoint comparison function

Auto zero tracking available

Power-up zero available

Dual RS232 / RS485 serial interface

Standard MODBUS RTU protocol

Optional 4~20mA ，0~10V interface

Specification:

Enclosure	35mm DIN Mount. PC material, IP20
Work Mode	Setpoint / Gross Filling /Net Filling / Check weigh(stable) / Batch weigh / Transmitter
Signal Range	-20mV~+20mV	Increments	1,2,5 x 10ⁿ(n=-4 ~1)
Max. Sensitivity	0.5uV/d	Max. Resolution	1/100,000
FS Drift	10ppm/°C	Linearity	0.003%FS
AD Refresh Rate	200Hz	Cells Load	Four (4) 350 ohm load cells
Display	0.96” OLED display, 128X64 pixel
Keypad	4 Flat switch membrane with tactile-feel keys; polyester overlay
Discrete I/O	2 Inputs; 4 Relay Outputs(250AC,1A/30VDC,2A)
USART	COM1: RS232; COM2: RS485. (1,200 ~ 115,200)
Serial Protocol	MODBUS-RTU, CTPZ Command, Continuous Output
Analog Out (Option)	Signal Range: 4~20mA / 0~20mA / 0~24mA / 0-5V/ 0-10V
Power Supply	20~28VDC, 3W
Operating Temperature	-10°C ~ +40°C，Relative humidity:10%~90%，non-condensing
