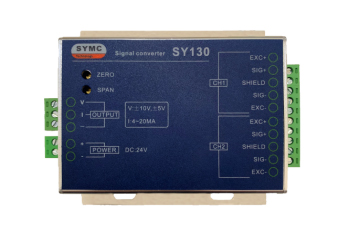

SY130

Weight Transmitter


SY130 weight transmitter is designed with mil-STD components for high precision, low drift features. The converter can translate bridge strain gauge signal into standard industrial 4~20mA/0~±10V analog output signal continuously with quick response. The converter can be connected with PLC, IPC and other automatic control system which equipped with analog input channel, widely used in stress, tension and torque test/control applications.



Features:

Small case size for flexible mounting

Bipolar output for bidirectional force test

Quick response frequency and stability

Input sensitivity: 0.5~ 3.0mv/V

Rated Output: 0~20mA, 0~±5V, 0~±10V

Power reverse protection

Standard MODBUS RTU protocol

Better EMI result with metallic enclosure

DC24V power supply(with LED indicator)


Selection Configuration:

Model

P.N

Description

SY130

22000357

Aluminium alloy enclosure, DC24V


Specification:

Enclosure

Aluminium alloy enclosure

Function Mode

Transmitter

Signal Sensitivity

0.8~3mV/V

Response Frequency

31KHz

FS Drift

£ ±≤±0.05%FS

Excitation Voltage

10VDC

Cells Load

Four (4) 350 ohm load cells

Analog Output

0~10mA0~20mA4~20mA0~5V0~10V0~±5V0~±10V

Power Supply

18~30VDC, 100mA

Operating Temperature

-10°C ~ +40°CRelative humidity:10%~90%non-condensing


Dimensions(mm):
