SYL load cell

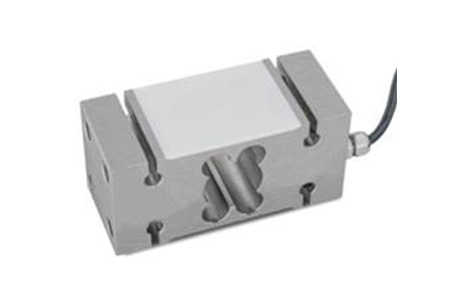

SYL single-point load cell is widely used in chemical, pharmaceutical,food and other industries .Only need appropriate capacity and reserve appropriate installation holes to transform the equipment into a weighing measuring device. |

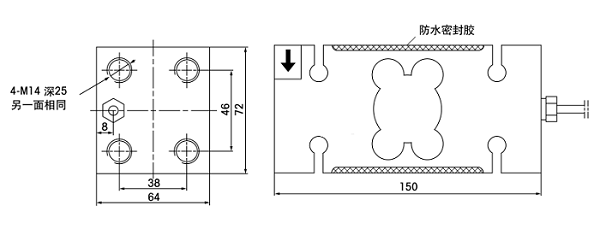

Dimensions(mm): SYL 50-1000kg | Features: IP65 protection Off center load compensated(OIML R76) Nickel plated alloy steel & Stainless steel Max.platform size:600×800mm Max.capacities:50~1000kg |
Specification:
Maximum capacity(Emax)(kg) | 50 | 100 | 150 | 200 | 250 | 300 | 500 | 750 | 1000 |
Rated output(mV/V) | 2.0±0.2 | ||||||||
Accuracy class(%F.S) | ±0.02 | ||||||||
Zero balance(%F.S) | ±1 | ||||||||
Temp.effect on zero(%F.S/10℃) | ±0.02 | ||||||||
Temp.effect on zero(%F.S/10℃) | ±0.02 | ||||||||
Input resistance(Ω) | 380±15 | ||||||||
Output resistance (Ω) | 350±3 | ||||||||
Insulation resistance@50VDC(MΩ) | ≥5000 | ||||||||
Temperature range compensated(℃) | -10~﹢40 | ||||||||
Temperature range operating (℃) | -30~﹢70 | ||||||||
Safe load limit(%F.S) | 150 | ||||||||
Ultimate load limit(%F.S) | 200 | ||||||||
Excitation voltage,recommend(V DC) | 10~12 | ||||||||
Excitation voltage,maximum(V DC) | 15 | ||||||||
Protection class | IP65 | ||||||||
Construction | alloy steel、 Stainless steel | ||||||||
Cable | Length :3m | ||||||||
Diameter :Φ5.8mm | |||||||||
Wiring schematic diagram | Exc+:Red;Exc-:Black;Sig+:Green;Sig-:White |
