WL1022 load cell

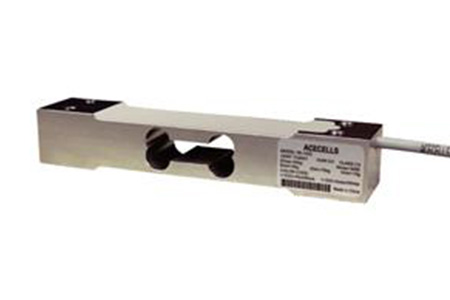

WL1022 single-point load cell is widely used in valuation scale,packaging scale and process weighing equipment.MAX.platform size:350×350mm. |

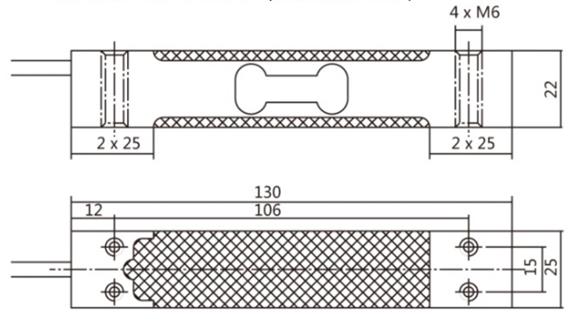

Dimensions(mm): WL1022 3-50kg | Features: IP65 protection Off center load compensated(OIML R76) OIML R60 C6 approved Aluminium Max.capacities:3~50kg |
Specification:
Maximum capacity(Emax)(kg) | 3 | 5 | 10 | 20 | 30 | 50 |
Rated output(mV/V) | 2.0±0.2 | |||||
Accuracy class(%F.S) | ±0.02 | |||||
Zero balance(%F.S) | ±10 | |||||
Temp.effect on zero(%F.S/10℃) | ±0.02 | |||||
Temp.effect on zero(%F.S/10℃) | ±0.02 | |||||
Input resistance(Ω) | 405±15 | |||||
Output resistance (Ω) | 350±3 | |||||
Insulation resistance@50VDC(MΩ) | ≥2000 | |||||
Temperature range compensated(℃) | -10~﹢40 | |||||
Temperature range operating (℃) | -30~﹢70 | |||||
Safe load limit(%F.S) | 150 | |||||
Ultimate load limit(%F.S) | 200 | |||||
Excitation voltage,recommend(V DC) | 10~12 | |||||
Excitation voltage,maximum(V DC) | 15 | |||||
Protection class | IP65 | |||||
Construction | Aluminium | |||||
Cable | Length:0.5m | |||||
Diameter:Φ5mm | ||||||
Wiring schematic diagram | Exc+:Red;Exc-:Black;Sig+:Green;Sig-:White |
